我们从写一个自定义 View 开始，了解 View 分发机制

事件分发

返回true消费事件

我们都知道 OnTouchEvent 和 OnTouchListener.onTouch() 都会返回 boolean 值

返回 true 表示消费此次事件

并且消费的是这个事件指的是一个事件序列，这一事件序列都是以 MotionEvent.ACTION_DOWN 开始，以 MotionEvent.ACTION_UP 或者 MotionEvent.ACTION_CANCEL 结束

所以消费这个事件的意思，是会将这个一整个事件序列消费掉，下面的 View 就不在接收到事件了

所以，只有在接收到 DOWN 事件返回 true 才会生效

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
override fun onTouchEvent(event: MotionEvent): Boolean {  // (1)
  return true
}

override fun onTouchEvent(event: MotionEvent): Boolean {  // (2)
  return if (event.actionMasked == MotionEvent.ACTION_DOWN) {
    true
  } else {
    false
  }
}

override fun onTouchEvent(event: MotionEvent): Boolean {  // (3)
  return event.actionMasked == MotionEvent.ACTION_DOWN
}

这三个的效果是完全一样的

OnTouchEvent

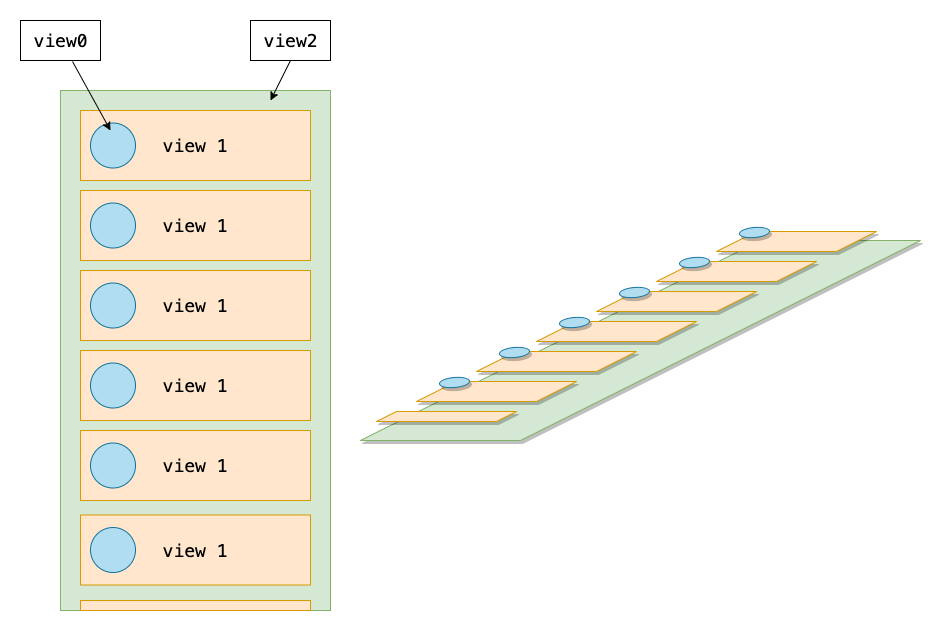

图中，view1 是 view2 的 子View，所以在点击的 view1 的时候，onTouchEvent 应该先传给 view1，再传给 view2，这样是符合直觉的

那么它是怎么处理这些事件的呢？我们看看源码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
// View.onTouchEvent(MotionEvent event)
public boolean onTouchEvent(MotionEvent event) {
    final float x = event.getX();
    final float y = event.getY();
    final int viewFlags = mViewFlags;
    final int action = event.getAction();
    final boolean clickable = ((viewFlags & CLICKABLE) == CLICKABLE
            || (viewFlags & LONG_CLICKABLE) == LONG_CLICKABLE)
            || (viewFlags & CONTEXT_CLICKABLE) == CONTEXT_CLICKABLE;
    if ((viewFlags & ENABLED_MASK) == DISABLED
            && (mPrivateFlags4 & PFLAG4_ALLOW_CLICK_WHEN_DISABLED) == 0) {
        if (action == MotionEvent.ACTION_UP && (mPrivateFlags & PFLAG_PRESSED) != 0) {
            setPressed(false);
        }
        mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
        // A disabled view that is clickable still consumes the touch
        // events, it just doesn't respond to them.
        return clickable;
    }
    if (mTouchDelegate != null) {
        if (mTouchDelegate.onTouchEvent(event)) {
            return true;
        }
    }
    if (clickable || (viewFlags & TOOLTIP) == TOOLTIP) {
        switch (action) {
            case MotionEvent.ACTION_UP:
                mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
                if ((viewFlags & TOOLTIP) == TOOLTIP) {
                    handleTooltipUp();
                }
                if (!clickable) {
                    removeTapCallback();
                    removeLongPressCallback();
                    mInContextButtonPress = false;
                    mHasPerformedLongPress = false;
                    mIgnoreNextUpEvent = false;
                    break;
                }
                boolean prepressed = (mPrivateFlags & PFLAG_PREPRESSED) != 0;
                if ((mPrivateFlags & PFLAG_PRESSED) != 0 || prepressed) {
                    // take focus if we don't have it already and we should in
                    // touch mode.
                    boolean focusTaken = false;
                    if (isFocusable() && isFocusableInTouchMode() && !isFocused()) {
                        focusTaken = requestFocus();
                    }
                    if (prepressed) {
                        // The button is being released before we actually
                        // showed it as pressed.  Make it show the pressed
                        // state now (before scheduling the click) to ensure
                        // the user sees it.
                        setPressed(true, x, y);
                    }
                    if (!mHasPerformedLongPress && !mIgnoreNextUpEvent) {
                        // This is a tap, so remove the longpress check
                        removeLongPressCallback();
                        // Only perform take click actions if we were in the pressed state
                        if (!focusTaken) {
                            // Use a Runnable and post this rather than calling
                            // performClick directly. This lets other visual state
                            // of the view update before click actions start.
                            if (mPerformClick == null) {
                                mPerformClick = new PerformClick();
                            }
                            if (!post(mPerformClick)) {
                                performClickInternal();
                            }
                        }
                    }
                    if (mUnsetPressedState == null) {
                        mUnsetPressedState = new UnsetPressedState();
                    }
                    if (prepressed) {
                        postDelayed(mUnsetPressedState,
                                ViewConfiguration.getPressedStateDuration());
                    } else if (!post(mUnsetPressedState)) {
                        // If the post failed, unpress right now
                        mUnsetPressedState.run();
                    }
                    removeTapCallback();
                }
                mIgnoreNextUpEvent = false;
                break;
            case MotionEvent.ACTION_DOWN:
                if (event.getSource() == InputDevice.SOURCE_TOUCHSCREEN) {
                    mPrivateFlags3 |= PFLAG3_FINGER_DOWN;
                }
                mHasPerformedLongPress = false;
                if (!clickable) {
                    checkForLongClick(
                            ViewConfiguration.getLongPressTimeout(),
                            x,
                            y,
                            TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
                    break;
                }
                if (performButtonActionOnTouchDown(event)) {
                    break;
                }
                // Walk up the hierarchy to determine if we're inside a scrolling container.
                boolean isInScrollingContainer = isInScrollingContainer();
                // For views inside a scrolling container, delay the pressed feedback for
                // a short period in case this is a scroll.
                if (isInScrollingContainer) {
                    mPrivateFlags |= PFLAG_PREPRESSED;
                    if (mPendingCheckForTap == null) {
                        mPendingCheckForTap = new CheckForTap();
                    }
                    mPendingCheckForTap.x = event.getX();
                    mPendingCheckForTap.y = event.getY();
                    postDelayed(mPendingCheckForTap, ViewConfiguration.getTapTimeout());
                } else {
                    // Not inside a scrolling container, so show the feedback right away
                    setPressed(true, x, y);
                    checkForLongClick(
                            ViewConfiguration.getLongPressTimeout(),
                            x,
                            y,
                            TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
                }
                break;
            case MotionEvent.ACTION_CANCEL:
                if (clickable) {
                    setPressed(false);
                }
                removeTapCallback();
                removeLongPressCallback();
                mInContextButtonPress = false;
                mHasPerformedLongPress = false;
                mIgnoreNextUpEvent = false;
                mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
                break;
            case MotionEvent.ACTION_MOVE:
                if (clickable) {
                    drawableHotspotChanged(x, y);
                }
                final int motionClassification = event.getClassification();
                final boolean ambiguousGesture =
                        motionClassification == MotionEvent.CLASSIFICATION_AMBIGUOUS_GESTURE;
                int touchSlop = mTouchSlop;
                if (ambiguousGesture && hasPendingLongPressCallback()) {
                    if (!pointInView(x, y, touchSlop)) {
                        // The default action here is to cancel long press. But instead, we
                        // just extend the timeout here, in case the classification
                        // stays ambiguous.
                        removeLongPressCallback();
                        long delay = (long) (ViewConfiguration.getLongPressTimeout()
                                * mAmbiguousGestureMultiplier);
                        // Subtract the time already spent
                        delay -= event.getEventTime() - event.getDownTime();
                        checkForLongClick(
                                delay,
                                x,
                                y,
                                TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
                    }
                    touchSlop *= mAmbiguousGestureMultiplier;
                }
                // Be lenient about moving outside of buttons
                if (!pointInView(x, y, touchSlop)) {
                    // Outside button
                    // Remove any future long press/tap checks
                    removeTapCallback();
                    removeLongPressCallback();
                    if ((mPrivateFlags & PFLAG_PRESSED) != 0) {
                        setPressed(false);
                    }
                    mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
                }
                final boolean deepPress =
                        motionClassification == MotionEvent.CLASSIFICATION_DEEP_PRESS;
                if (deepPress && hasPendingLongPressCallback()) {
                    // process the long click action immediately
                    removeLongPressCallback();
                    checkForLongClick(
                            0 /* send immediately */,
                            x,
                            y,
                            TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__DEEP_PRESS);
                }
                break;
        }
        return true;
    }
    return false;
}
  • 3~6 行是获取基本信息，点击事件的坐标，viewFlags 以及 action
  • 7~9 行是检查是否可点击，供下面判断使用，值得一提的是这个 CONTEXT_CLICKABLE 对于是老实手机存在的一个类似右键点击的操作
  • 10~19 行是在处理 本可以点击，但设置为禁用状态的处理，设置为禁用，并不会防止消耗此次事件（如果禁用就不会消耗事件，那么就跟变透明了一样，点击这里，事件却被传到了这个 view 的后面，这明显是错误的，view 事件应该是直接在这个被禁用的 view 处被阻拦这样更符合直觉）
  • 20~24 行是触摸代理，这个是用来帮忙接收触摸事件的，比如扩大按钮的点击范围，但其实有很多其他扩大点击范围的方法，所以这个其实并不是很常用，单页挺简单的
  • 25 行，从这里开始就是主要部分了

    • 首先进入这个大 if 作用域，要判断 clickable 以及 TOOLTIP
      TOOLTIP 就是长按按钮浮出的一段文字，目的是解释当前 view 是干什么的

      1
      2
      3
      4
      5
      6
      <View
      android:id="@+id/touch_view"
      android:layout_width="300dp"
      android:layout_height="300dp"
      android:background="#335EC8"
      android:tooltipText="这是一个 View" />

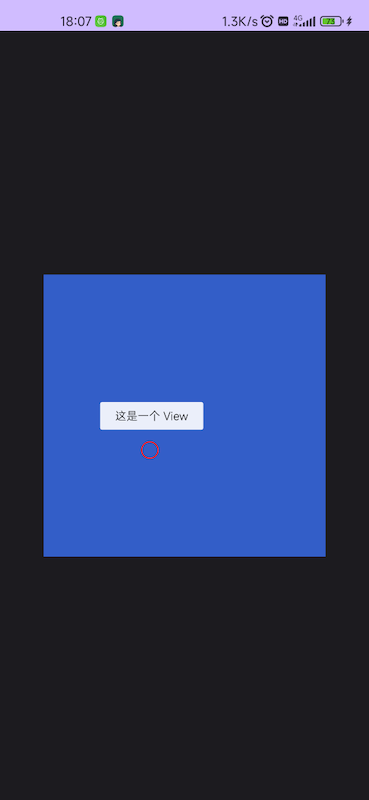

      红圈是点击位置

    • 接下来就是对于不同 action 进行相应
      根据事件序列的顺序，我们先看 ACTION_DOWN ，第 85 行

      1. 从第 85 行开始，他首先判断了 event.getSource() 是否是 InputDevice.SOURCE_TOUCHSCREEN

        这是为了为手指触摸屏幕做一些优化，因为你的手指按下的是一个面，不是一个点，所以他要有优化一下比如前面提到的 tooltip 的悬浮显示，会跟点击位置有一点距离

      2. 90 行在不可点击的时候，调用了 checkForLongClick（检查是否要长按，也就是等一会看看是否还是按下状态） 也是因为上面提示的 Tooltip

      3. 98 行是检测鼠标右键点击的

        没错，Android 是直接外接鼠标键盘的，90 行判断的 event.getSource() 也有可能是 InputDevice.SOURCE_MOUSE

      4. 102 行是判断是否在一个滑动控件里，这个其实挺有意思

        我们点进去看看

        1
        2
        3
        4
        5
        6
        7
        8
        9
        10
        11
        @UnsupportedAppUsage(maxTargetSdk = Build.VERSION_CODES.R, trackingBug = 170729553)
        public boolean isInScrollingContainer() {
            ViewParent p = getParent();
            while (p != null && p instanceof ViewGroup) {
                if (((ViewGroup) p).shouldDelayChildPressedState()) {
                    return true;
                }
                p = p.getParent();
            }
            return false;
        }

        这段代码是一个循环，一层层看是否需要延迟设置 pressedState ，第 5 行有一个 shouldDelayChildPressedState
        这个延迟，就是用来判断你是要滑动这个控件还是要点击这个控件

        我们继续回来看，第 105 行，如果是在滑动控件里，就会设为 PFLAG_PREPRESSED （pre press，预按下状态），并调用 postDelay ，CheckForTap 本身是一个 Runnable，他就是一个延迟的设置按下状态的事件

        如果不在滑动控件里，就直接设置按下状态

        注意

        如果你的自定义 View 不是可滑动的，应该重写 shouldDelayChildPressedState() 这个方法并返回 false，这是因为 ViewGroup.shouldDelayChildPressedState() 默认返回 true，也就是所有的 ViewGroup 都默认可滑动，不重写就会某人有一个等待时间

    • 现在看 ACTION_MOVE ，第 134 行

      1. 135~137 行 drawableHotspotChanged(x, y) 是绘制水波纹的效果的
      2. 接下来 141~170 行 都是在不同情况下，发现 pointInView(x, y, touchSlop) 返回 false ，也就是手指点击区域不在当前 view 的范围了（TouchSlop 是一个 view 边界的宽容，不至于手指稍微出去一点点，就判断出范围），就移除相应的东西，将状态设为 false
      3. 171~181 行，就是关于压力触控的设置

    • 现在看 ACTION_UP ，第 27 行

      1. 29~31 行，是判断你按压的时间是否支持显示 Tooltip
      2. 32~39 行，是在不可点击的时候，进行各种移除
      3. 40 行，这里就是前面所说的 pre press ，预按下状态
      4. 44~47 行，这里是看看能不能获取焦点，isFocusableInTouchMode 这是物理按键，或者 Android 电视所需要使用的
      5. 48~54 行，如果是预按下状态，设置为按下状态
      6. 55~70 行，这里就是点击事件
      7. 74~80 行，这里是预按下状态，设置一个延迟，防止过快显示

    • 再看 123 行的 ACTION_CANCEL，就是单纯地在意外退出的时候，各种移除，干擦屁股的工作

onInterceptTouchEvent

1
2
3
4
5
6
7
8
9
10
// ViewGroup.onInterceptTouchEvent(MotionEvent ev)
public boolean onInterceptTouchEvent(MotionEvent ev) {
    if (ev.isFromSource(InputDevice.SOURCE_MOUSE)
            && ev.getAction() == MotionEvent.ACTION_DOWN
            && ev.isButtonPressed(MotionEvent.BUTTON_PRIMARY)
            && isOnScrollbarThumb(ev.getX(), ev.getY())) {
        return true;
    }
    return false;
}

这个函数的作用是父 view 拦截事件，让子 view 收不到后续事件，他可以在接收到任意事件后，拦截他，随后的一整个事件序列就不会再传给子 view 了，而是传给 自己的 OnTouchEvent

并且，如果是中途拦截，需要给子 view 发送 CANCEL 事件，因为这是意外退出事件序列

使用方法

这个方法使用很简单，就是直接重写，然后在你需要的时候，返回不同的值就行

比如你想在用户滑动超过 5 个像素的时候，返回 true，否则就返回 false

当然你还需要记录这些事件，以便拦截之后，供你的 OnTouchEvent 使用

复杂的代码逻辑往往是在 OnTouchEvent 里面

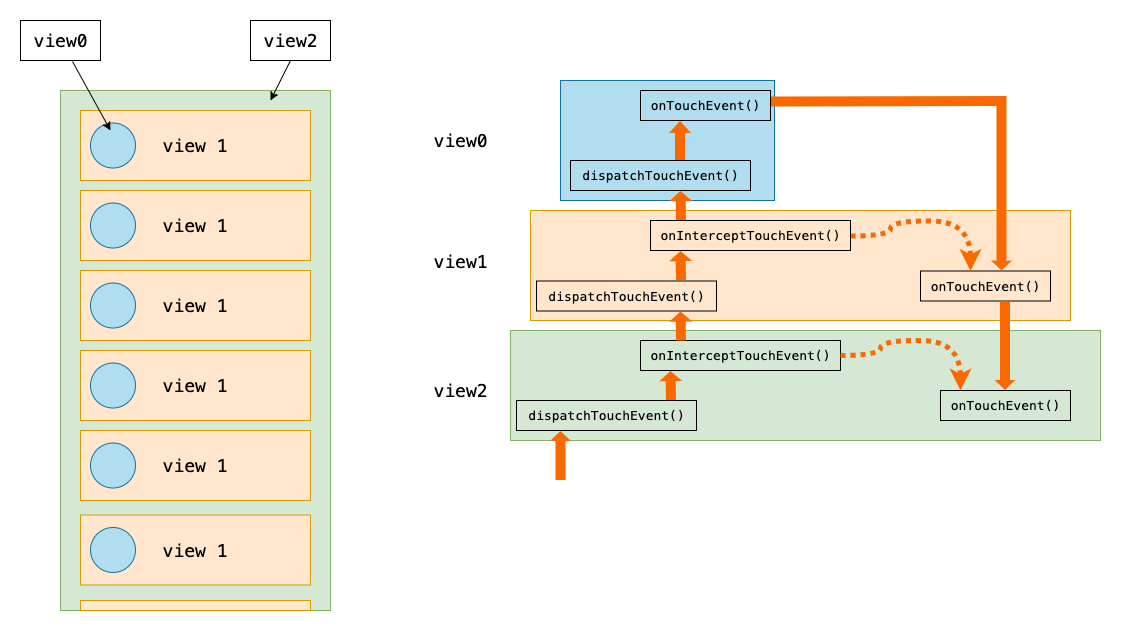

dispatchTouchEvent

dispatchTouchEvent 是一个事件分发的开始，他会先判断是否需要拦截此事件，看看是否要传给子 view，如果不拦截，就传给子 view 的 dispatchTouchEvent，最后再从 OnTouchEvent 传回来；如果不拦截，就直接传给自己的 OnTouchEvent，如图所示


View

这个是 View 的 dispatchTouchEvent，ViewGroup 的 dispatchTouchEventde 的实现还有所不同

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
// View.dispatchTouchEvent(MotionEvent event)
public boolean dispatchTouchEvent(MotionEvent event) {
    // If the event should be handled by accessibility focus first.
    if (event.isTargetAccessibilityFocus()) {
        // We don't have focus or no virtual descendant has it, do not handle the event.
        if (!isAccessibilityFocusedViewOrHost()) {
            return false;
        }
        // We have focus and got the event, then use normal event dispatch.
        event.setTargetAccessibilityFocus(false);
    }
    boolean result = false;

    if (mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onTouchEvent(event, 0);
    }

    final int actionMasked = event.getActionMasked();
    if (actionMasked == MotionEvent.ACTION_DOWN) {
        // Defensive cleanup for new gesture
        stopNestedScroll();
    }

    if (onFilterTouchEventForSecurity(event)) {
        if ((mViewFlags & ENABLED_MASK) == ENABLED && handleScrollBarDragging(event)) {
            result = true;
        }
        //noinspection SimplifiableIfStatement
        ListenerInfo li = mListenerInfo;
        if (li != null && li.mOnTouchListener != null
                && (mViewFlags & ENABLED_MASK) == ENABLED
                && li.mOnTouchListener.onTouch(this, event)) {
            result = true;
        }

        if (!result && onTouchEvent(event)) {
            result = true;
        }
    }

    if (!result && mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onUnhandledEvent(event, 0);
    }

    // Clean up after nested scrolls if this is the end of a gesture;
    // also cancel it if we tried an ACTION_DOWN but we didn't want the rest
    // of the gesture.
    if (actionMasked == MotionEvent.ACTION_UP ||
            actionMasked == MotionEvent.ACTION_CANCEL ||
            (actionMasked == MotionEvent.ACTION_DOWN && !result)) {
        stopNestedScroll();
    }

    return result;
}

关键就在于 24~39 行，这里会依次响应你为他设置的 OnTouchListener 以及这个 view 自身的 OnTouchEvent

ViewGroup

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
    if (mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
    }

    // If the event targets the accessibility focused view and this is it, start
    // normal event dispatch. Maybe a descendant is what will handle the click.
    if (ev.isTargetAccessibilityFocus() && isAccessibilityFocusedViewOrHost()) {
        ev.setTargetAccessibilityFocus(false);
    }

    boolean handled = false;
    if (onFilterTouchEventForSecurity(ev)) {
        final int action = ev.getAction();
        final int actionMasked = action & MotionEvent.ACTION_MASK;

        // Handle an initial down.
        if (actionMasked == MotionEvent.ACTION_DOWN) {
            // Throw away all previous state when starting a new touch gesture.
            // The framework may have dropped the up or cancel event for the previous gesture
            // due to an app switch, ANR, or some other state change.
            cancelAndClearTouchTargets(ev);
            resetTouchState();
        }

        // Check for interception.
        final boolean intercepted;
        if (actionMasked == MotionEvent.ACTION_DOWN
                || mFirstTouchTarget != null) {
            final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
            if (!disallowIntercept) {
                intercepted = onInterceptTouchEvent(ev);
                ev.setAction(action); // restore action in case it was changed
            } else {
                intercepted = false;
            }
        } else {
            // There are no touch targets and this action is not an initial down
            // so this view group continues to intercept touches.
            intercepted = true;
        }

        // If intercepted, start normal event dispatch. Also if there is already
        // a view that is handling the gesture, do normal event dispatch.
        if (intercepted || mFirstTouchTarget != null) {
            ev.setTargetAccessibilityFocus(false);
        }

        // Check for cancelation.
        final boolean canceled = resetCancelNextUpFlag(this)
                || actionMasked == MotionEvent.ACTION_CANCEL;

        // Update list of touch targets for pointer down, if needed.
        final boolean isMouseEvent = ev.getSource() == InputDevice.SOURCE_MOUSE;
        final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0
                && !isMouseEvent;
        TouchTarget newTouchTarget = null;
        boolean alreadyDispatchedToNewTouchTarget = false;
        if (!canceled && !intercepted) {
            // If the event is targeting accessibility focus we give it to the
            // view that has accessibility focus and if it does not handle it
            // we clear the flag and dispatch the event to all children as usual.
            // We are looking up the accessibility focused host to avoid keeping
            // state since these events are very rare.
            View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
                    ? findChildWithAccessibilityFocus() : null;

            if (actionMasked == MotionEvent.ACTION_DOWN
                    || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
                    || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
                final int actionIndex = ev.getActionIndex(); // always 0 for down
                final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
                        : TouchTarget.ALL_POINTER_IDS;

                // Clean up earlier touch targets for this pointer id in case they
                // have become out of sync.
                removePointersFromTouchTargets(idBitsToAssign);

                final int childrenCount = mChildrenCount;
                if (newTouchTarget == null && childrenCount != 0) {
                    final float x =
                            isMouseEvent ? ev.getXCursorPosition() : ev.getX(actionIndex);
                    final float y =
                            isMouseEvent ? ev.getYCursorPosition() : ev.getY(actionIndex);
                    // Find a child that can receive the event.
                    // Scan children from front to back.
                    final ArrayList<View> preorderedList = buildTouchDispatchChildList();
                    final boolean customOrder = preorderedList == null
                            && isChildrenDrawingOrderEnabled();
                    final View[] children = mChildren;
                    for (int i = childrenCount - 1; i >= 0; i--) {
                        final int childIndex = getAndVerifyPreorderedIndex(
                                childrenCount, i, customOrder);
                        final View child = getAndVerifyPreorderedView(
                                preorderedList, children, childIndex);

                        // If there is a view that has accessibility focus we want it
                        // to get the event first and if not handled we will perform a
                        // normal dispatch. We may do a double iteration but this is
                        // safer given the timeframe.
                        if (childWithAccessibilityFocus != null) {
                            if (childWithAccessibilityFocus != child) {
                                continue;
                            }
                            childWithAccessibilityFocus = null;
                            i = childrenCount;
                        }

                        if (!child.canReceivePointerEvents()
                                || !isTransformedTouchPointInView(x, y, child, null)) {
                            ev.setTargetAccessibilityFocus(false);
                            continue;
                        }

                        newTouchTarget = getTouchTarget(child);
                        if (newTouchTarget != null) {
                            // Child is already receiving touch within its bounds.
                            // Give it the new pointer in addition to the ones it is handling.
                            newTouchTarget.pointerIdBits |= idBitsToAssign;
                            break;
                        }

                        resetCancelNextUpFlag(child);
                        if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
                            // Child wants to receive touch within its bounds.
                            mLastTouchDownTime = ev.getDownTime();
                            if (preorderedList != null) {
                                // childIndex points into presorted list, find original index
                                for (int j = 0; j < childrenCount; j++) {
                                    if (children[childIndex] == mChildren[j]) {
                                        mLastTouchDownIndex = j;
                                        break;
                                    }
                                }
                            } else {
                                mLastTouchDownIndex = childIndex;
                            }
                            mLastTouchDownX = ev.getX();
                            mLastTouchDownY = ev.getY();
                            newTouchTarget = addTouchTarget(child, idBitsToAssign);
                            alreadyDispatchedToNewTouchTarget = true;
                            break;
                        }

                        // The accessibility focus didn't handle the event, so clear
                        // the flag and do a normal dispatch to all children.
                        ev.setTargetAccessibilityFocus(false);
                    }
                    if (preorderedList != null) preorderedList.clear();
                }

                if (newTouchTarget == null && mFirstTouchTarget != null) {
                    // Did not find a child to receive the event.
                    // Assign the pointer to the least recently added target.
                    newTouchTarget = mFirstTouchTarget;
                    while (newTouchTarget.next != null) {
                        newTouchTarget = newTouchTarget.next;
                    }
                    newTouchTarget.pointerIdBits |= idBitsToAssign;
                }
            }
        }

        // Dispatch to touch targets.
        if (mFirstTouchTarget == null) {
            // No touch targets so treat this as an ordinary view.
            handled = dispatchTransformedTouchEvent(ev, canceled, null,
                    TouchTarget.ALL_POINTER_IDS);
        } else {
            // Dispatch to touch targets, excluding the new touch target if we already
            // dispatched to it.  Cancel touch targets if necessary.
            TouchTarget predecessor = null;
            TouchTarget target = mFirstTouchTarget;
            while (target != null) {
                final TouchTarget next = target.next;
                if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
                    handled = true;
                } else {
                    final boolean cancelChild = resetCancelNextUpFlag(target.child)
                            || intercepted;
                    if (dispatchTransformedTouchEvent(ev, cancelChild,
                            target.child, target.pointerIdBits)) {
                        handled = true;
                    }
                    if (cancelChild) {
                        if (predecessor == null) {
                            mFirstTouchTarget = next;
                        } else {
                            predecessor.next = next;
                        }
                        target.recycle();
                        target = next;
                        continue;
                    }
                }
                predecessor = target;
                target = next;
            }
        }

        // Update list of touch targets for pointer up or cancel, if needed.
        if (canceled
                || actionMasked == MotionEvent.ACTION_UP
                || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
            resetTouchState();
        } else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
            final int actionIndex = ev.getActionIndex();
            final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
            removePointersFromTouchTargets(idBitsToRemove);
        }
    }

    if (!handled && mInputEventConsistencyVerifier != null) {
        mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
    }
    return handled;
}

这就是 ViewGroup 的 dispatchTouchEvent，确实是复杂了很多，主要是因为多点触控

多点触控涉及一个新的类就是 TouchTarget

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
private static final class TouchTarget {
    private static final int MAX_RECYCLED = 32;
    private static final Object sRecycleLock = new Object[0];
    private static TouchTarget sRecycleBin;
    private static int sRecycledCount;
    public static final int ALL_POINTER_IDS = -1; // all ones
    // The touched child view.
    @UnsupportedAppUsage
    public View child;
    // The combined bit mask of pointer ids for all pointers captured by the target.
    public int pointerIdBits;
    // The next target in the target list.
    public TouchTarget next;
    @UnsupportedAppUsage
    private TouchTarget() {
    }
    public static TouchTarget obtain(@NonNull View child, int pointerIdBits) {
        if (child == null) {
            throw new IllegalArgumentException("child must be non-null");
        }
        final TouchTarget target;
        synchronized (sRecycleLock) {
            if (sRecycleBin == null) {
                target = new TouchTarget();
            } else {
                target = sRecycleBin;
                sRecycleBin = target.next;
                 sRecycledCount--;
                target.next = null;
            }
        }
        target.child = child;
        target.pointerIdBits = pointerIdBits;
        return target;
    }
    public void recycle() {
        if (child == null) {
            throw new IllegalStateException("already recycled once");
        }
        synchronized (sRecycleLock) {
            if (sRecycledCount < MAX_RECYCLED) {
                next = sRecycleBin;
                sRecycleBin = this;
                sRecycledCount += 1;
            } else {
                next = null;
            }
            child = null;
        }
    }
}

我们看这个类的结构，里面有一个 next，类型也是 Target，没错和你想的一样，这是一个单链表数据结构

obtain 函数就是一个获取 Target 的函数，他只会在有子 View 的时候被调用，也就是 child 不为 null 的时候

recycle 是一个回收函数，比较简单

我们回到 dispatchTouchEvent()，这段代码新概念偏多并且逻辑复杂，所以我们直接看简化的总结

  • 19~25 行，如果用户初次按下（ACTION_DOWN），清空 TouchTargets 和 DISALLOW_INTERCEPT 标记
  • 27~48 行，这里就是处理 onInterceptTouchEvent 和 requestDisallowInterceptTouchEvent，如果拦截成功，就进行正常的事件分发（看 44 行的注释：If intercepted, start normal event dispatch.），就是调用自己的 onTouchEvent
  • 60~163 行，如果不拦截并不是 CANCEL 事件，并且是 DOWN 或者 POINTER_DOWN，尝试把 pointer（手指）通过 TouchTarget 分配给子 View；如果分配给了子 View，调用 child.dispatchTouchEvent() 事件传给子 View
    POINTER_DOWN 转给 第一次接收事件的子 View 时，会转成 DOWN 事件
  • 166 行，看有没有 TouchTarget
    • 如果没有，调用 dispatchTransformedTouchEvent，其中在 child 为空的时候，会将事件传给自己
    • 如果有，调用 child.dispatchTouchEvent() 把事件传给对应的子 View（如果有的话）
  • 202~211 行如果是 POINTER_UP，从 TouchTargets 中清除 POINTER 信息；如果是 UP 或者 CANCEL，重置状态
  • Title: Android自定义View01 - 事件分发原理
  • Author: lucas
  • Created at : 2023-12-06 09:46:25
  • Updated at : 2023-12-15 10:07:12
  • Link: https://darkflamemasterdev.github.io/2023/12/06/Android自定义View01-事件分发原理/
  • License: This work is licensed under CC BY-NC-SA 4.0.
Other articles
Android自定义View03 - 属性动画 Android自定义View03 - 属性动画 Android小技巧01-持续按钮 Android小技巧01-持续按钮 OpenGL 窗口 OpenGL 窗口
Other articles
Android自定义View03 - 属性动画 Android自定义View03 - 属性动画 Android小技巧01-持续按钮 Android小技巧01-持续按钮
Comments
On this page
Android自定义View01 - 事件分发原理
  1. 事件分发
    1. OnTouchEvent
    2. onInterceptTouchEvent
    3. dispatchTouchEvent
      1. View
      2. ViewGroup
